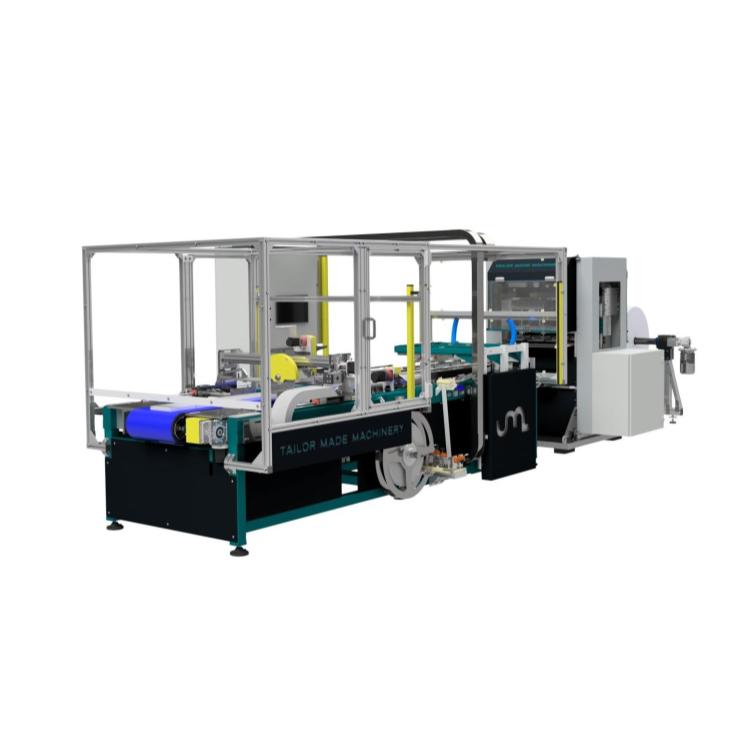

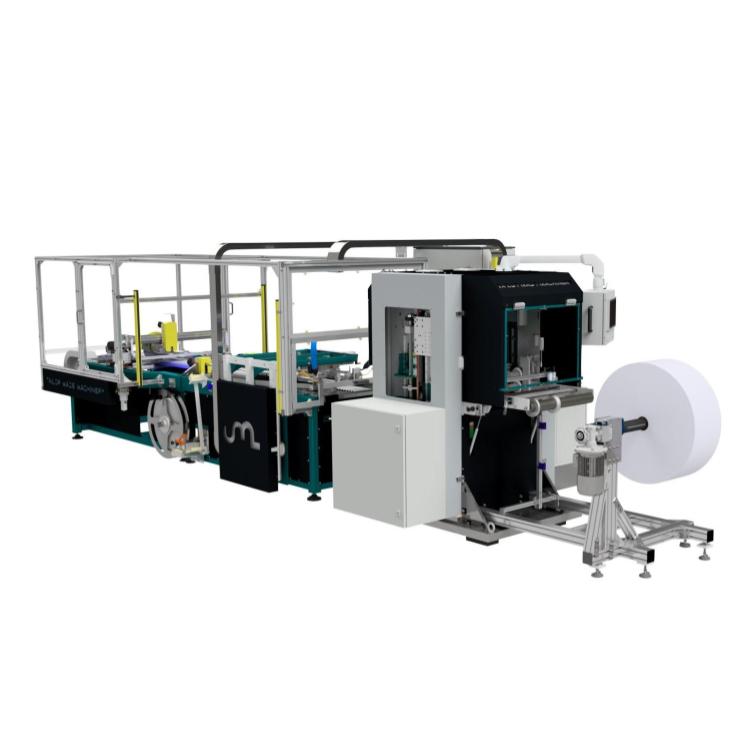

CABIN & PANEL LINE

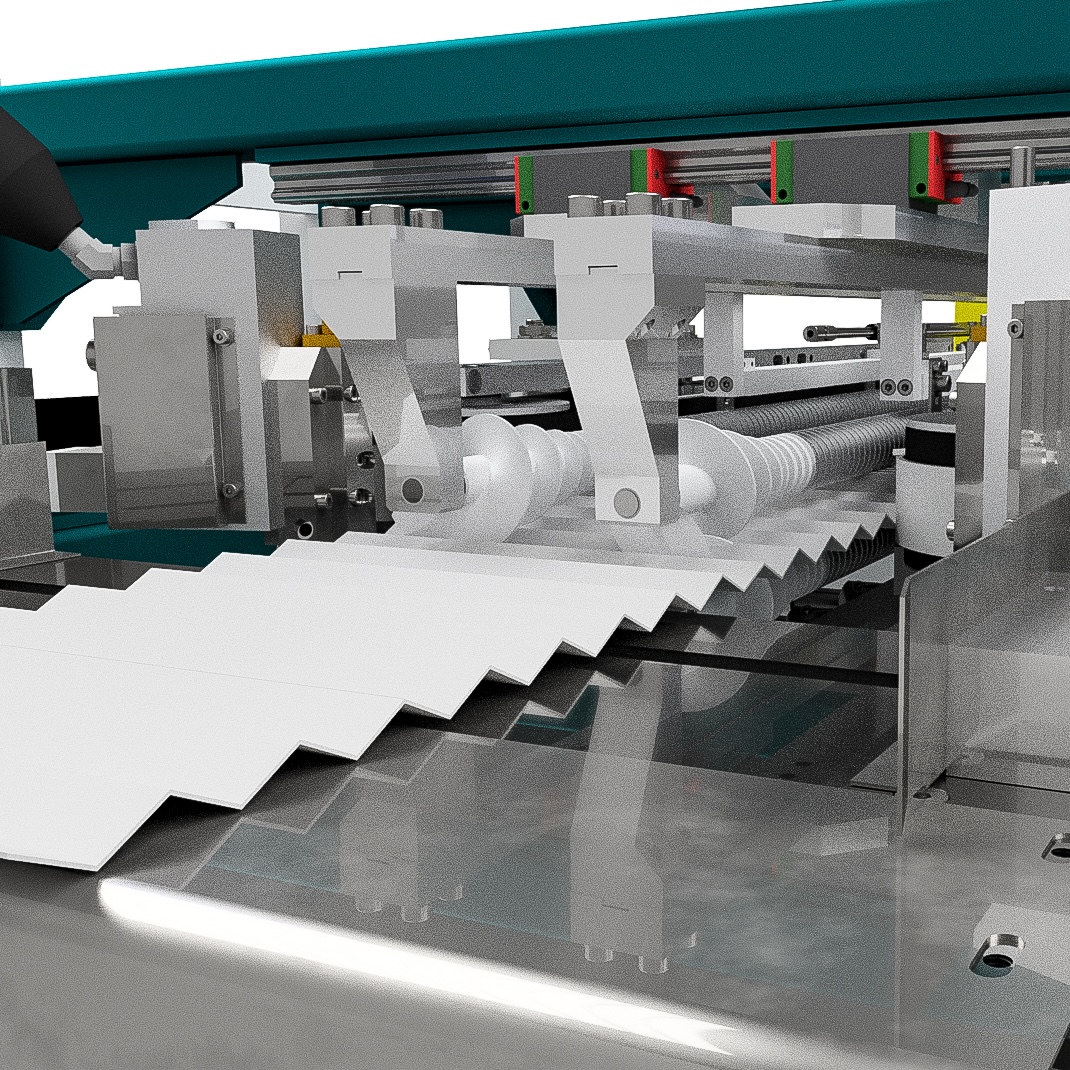

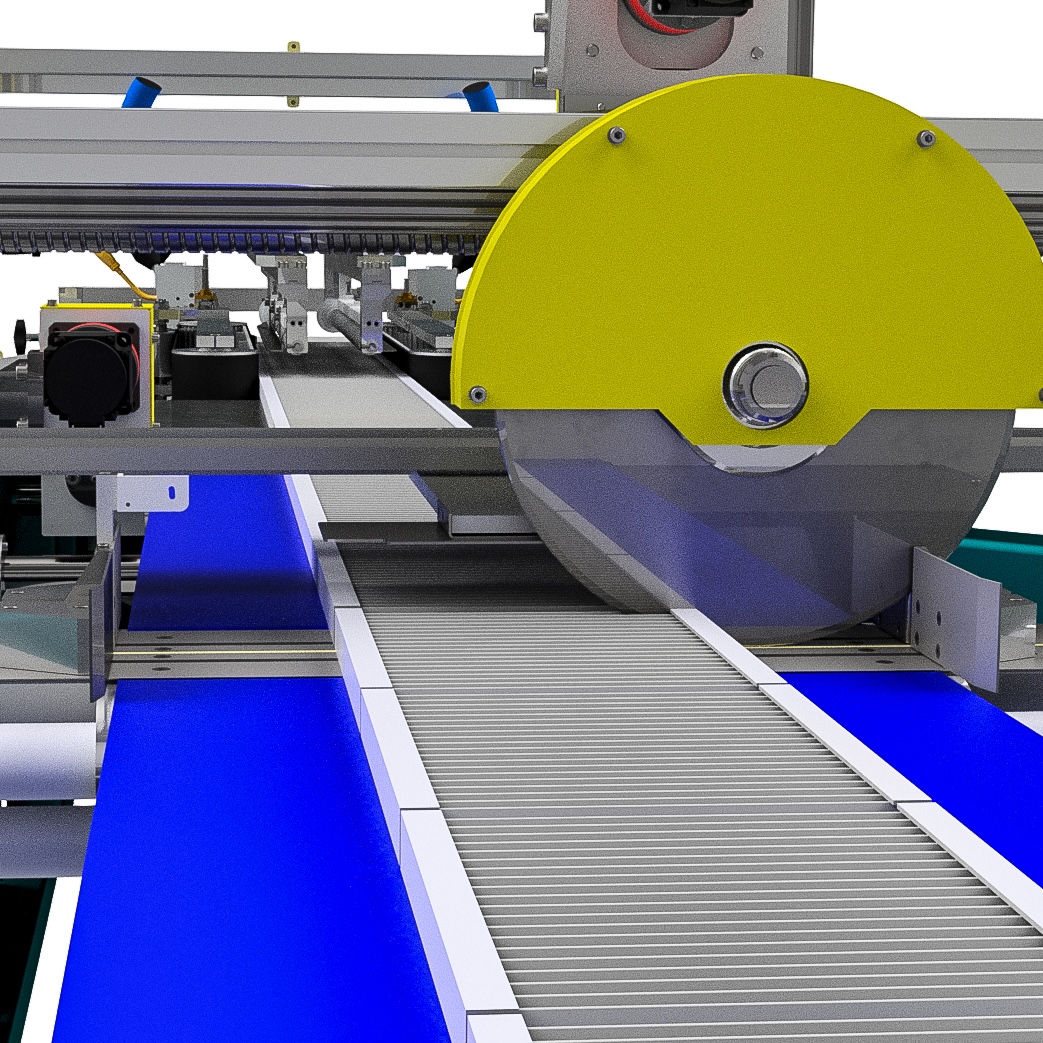

Automatic production line for cabin and panel filters, consisting of a blade-type folding machine, a machine for applying side strips with I-L-C closure on 2 or 4 sides, optional top and bottom stabilizers, and finally a cross-cutting unit.

Dimension:

8.009 mm x 2.182 mm x 3.374 mm

Weight:

3.820

Maximum speed:

250 folds/min

Number of ‘sides’ producible:

2 e/o 4

Min-max bending height:

10-80 mm if I-shaped strip; 10-65 mm if «L» shaped band; 10-50 mm if «C» shaped strap

Min-max working width:

80 – 450 mm

PLC:

Mitsubishi

Drivers:

Mitsubishi

Output products:

Cabin filters, Panel filters, Pre-filters, Filters for residential and industrial air conditioners, Vacuum cleaner filters
